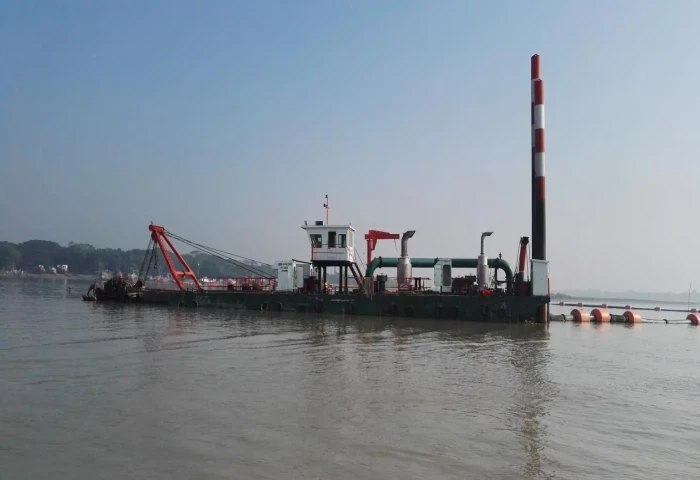

KEDA 24inch Cutter Suction Dredger/Sand Dredger
Model:KDCSD300
Water Flow(m3/h):1500
Standard dredging Depth (m):8
Standard discharge distance:1000
:
I.24inch Cutter suction dredger Description
KEDA 24inch cutter suction dredger/sand dredger/dredger can apply to all kinds of geologic structures and can be widely used in mineral digging, river dredging, lake dredging, port dredging and reclamation works. By absorbing advanced technology of Dutch and American related products, this series of dredgers show their characteristics of rational design, all hydraulic control, simple operation, little maintenance and strong power. dredging depth from 4 m to 25 m and discharge distance from 300 m to 3000 m, which can satisfy different dredger work demands.
II.24inch Cutter suction dredger Feature
1. One-man operation.
2. New highly effective cutter /wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5. Completely assembled and fully tested before delivery
6. Very simple and fast assembly with experienced engineers.
7. Standard design, allowing short delivery times
8. Standard spare parts available from stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Customized according to customer's working conditions
III.24inch Cutter suction dredger Specification
| Principle Particulars | |
| (1). Overall Length | 47.5m |
| (2). Breadth | 9m |
| (3). Hull depth | 2.5m |
| (4). Dredging Depth | 14m |
| (5). Discharge Distance | 2000m |
| (6). Dredge pump capacity | 5000m3/h |
| (7). Solid Capacity | About1000m3/h |
| (8). Suction Pipe Dia. | 700mm |
| (9). Discharge Pipe Dia. | 650mm |
| (10).Draft | 1.4m |
| (11).Total installed power | 2446kW |
| (12).Fuel consumption | 611L/hr |
| (13).Oil tank capacity | 40000L |
| Work condition | |
| (1).Max. temperature | 500C |
| (2).Min. temperature | -100C |
| (3).Max. temperature of the cabin | 500C |
| (4).Max. temperature of the river (sea) water () | 300C |
| (5).The relative humidity | ≤80 |
IV.24inch Cutter suction dredger Packing and Delivery
Packaging Details : 40HQ container * 6sets
Port : Qingdao Port
