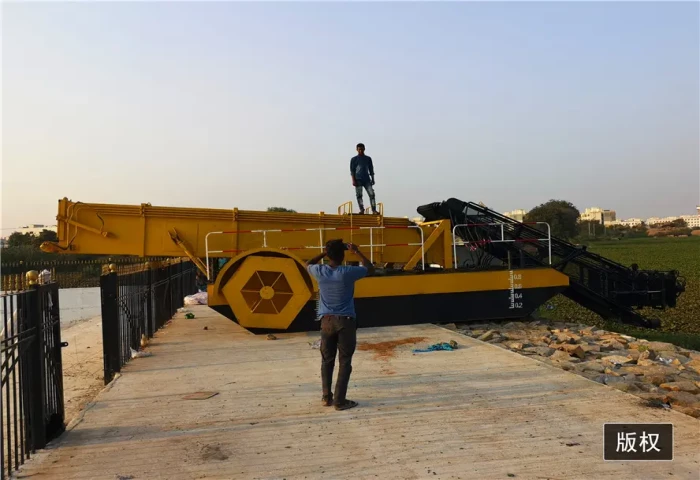

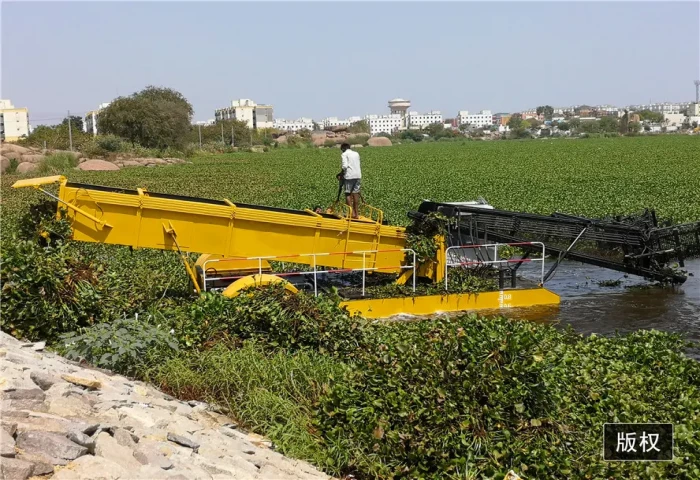

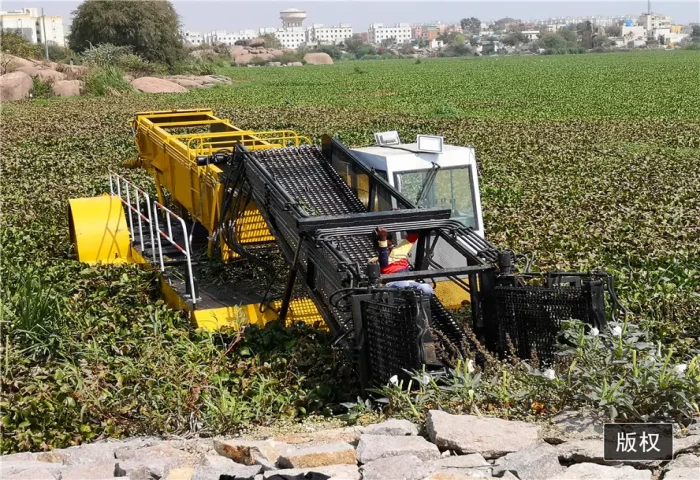

Water Hyacinth Harvester
aquatic weed harvester is used to clean the aquatic weed, water hyacinth, reed, floating garbage etc. The harvester is of one engine, propelled by two paddle wheels with hydraulic system.
:
aquatic weed harvester is used to clean the aquatic weed, water hyacinth, reed, floating garbage etc. The harvester is of one engine, propelled by two paddle wheels with hydraulic system. The collecting cabin will be adjusted according to the collecting depth. Front collecting cabin, middle collecting cabin and rear collecting cabin are all made by stainless steel conveyor belt. All the gathering, collecting, draining and discharge work are fully automatic. The efficiency is very high, which is tens times of man power.
Features
-high navigation speed,
-good stability,
-abroad collection range
-simple operation and continuous cruising ability
-all gathering, salvage, water filtration and discharge process adopt full automatic control with high efficiency.
|
Parameter |
|||||
|
Model |
KD-50 |
KD-100 |
KD-150 |
KD-200 |
KD-250 |
|
Size （L*W*H） |
7x2.3x1.6 m |
10.5*4.2*2.5 m |
12*4.4*2.7 m |
15*4.5*2.7 m |
17*4.5*4 m |
|
Cutting Width |
1.2 m |
1.6m |
1.8m |
2m |
2.2m |
|
Cutting Depth |
0.5 m |
0.8m |
1m |
1.1m |
1.2m |
|
Draft |
0.4-0.5 m |
0.4-0.5 m |
0.4-0.5 m |
0.4-0.5 m |
0.4-0.5 m |
|
Discharge Height |
1.5 m |
2.5 m |
2.5 m |
2.5 m |
2.5 m |
|
Driven Type |
Paddle wheel |
Paddle wheel |
Paddle wheel |
Paddle wheel |
Paddle wheel |
|
Control System |
Semi Automatic |
Full Hydraulic |
Full Hydraulic |
Full Hydraulic |
Full Hydraulic |
